ACHI IR12000 Infrared BGA Rework Station

ACHI IR12000 Infrared BGA Rework Station 2014 latest released, main features as below:
1. Three temperature zones : top heater 80x80mm ELSTEIN RFS/80 heater, lower hot air, bottom preheating 350x210mm. They work independently and can be controlled and adjusted to meet actual need

2. Apply original imported ELSTEIN RFS/80 400W Ceramic from Germany, giving even heating. The max
temperature could up to 750°C.

3. Most easy operate infrared bga rework station with 7 inch high definition touch screen. Heating temperature, time, angle, cooling and vacuuming  all can be realized through the touch screen.

4. Real time setting and actual temperature profile display can be used to analyze and correct parameters when needed.

5. PID control, instant profile analysis function

6. Can store unlimited temperature profiles, 2 groups already stored.

7. Removable fixture and 6pcs rework support jis  it make positioning mainboards much more easy and protect mainboards from damage and deformation efficiently. Irregular mainboards can be repaired too.

8. Uses advanced OMEGA K-type thermocouple to get accurate temperature detection

9. Closedloop Temperature control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 deg C

10. External temperature sensor enables accurate monitoring and analysis of real time temperature profile.

11. Equipped with various size BGA air nozzles, they can be adjusted in 360 degrees with easy installation and replacement.

12. High powered blower to enable fast cooling of PCB board and prolong using life of machine .

13.  Internal vacuum pump and external vacuum pen to assist picking up the BGA chip.

14.  Function of alarming and cooling system.
The machine will alarm before 5-10 seconds of the soldering or desoldering finished,
Cooling system will start after vertical wind stopped heating.
When the temperature drops to room temperature, the cooling process will stop

15. Emergency Switch and Automatic power -off protection device to help safe using.

14. USB interface for ungrading the machine software.

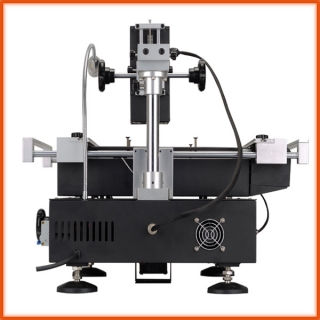

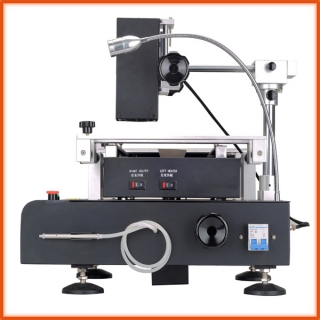

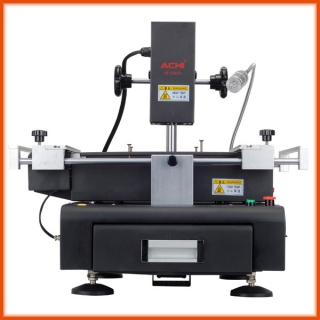

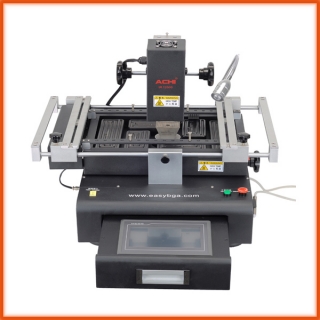

Detailed  pictures for ACHI IR12000 infared BGA rework station
