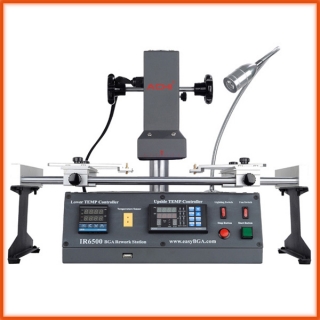

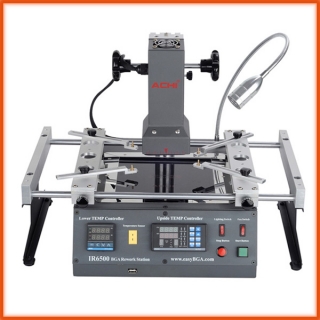

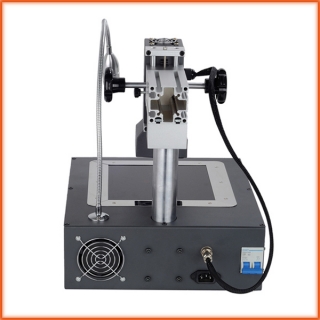

ACHI IR6500 Infrared BGA Rework Station

ACHI IR6500 Infrared BGA rework Station is a popular BGA rework station uses advanced dark infrared technology. 1. High temperature tempered glass to make sure even heat.

2.USB interface easy to be connected with computer.

3. Support jig added, make locating mainboards eaily.

4. Advanced external OMEGA K type thermocouple wire provide accurate temperature detection.

5. Safe emergeny power switch to make sure the machine stop working when emergency happen.

6. Alarming function. When soldering or desoldering will be finished, it will alarm before 3-5 seconds.

7. No hot air during rework process, make even heat and protect the surrounding compnents from damage and deformation.

8. Can store 10 groups of temperature profiles. Two groups already stored for using.

9. Can be controlled by the IRSOFT temperature software.

10. Two temperature zones, work independently, temperature parameters are adjustable and correct per actual need.

11. Can rework BGA chip size large as to 70x70mm
